Automatic Gate Repair in Highland Park – Call Now-10% Off – On-Site in 60 Minutes – Free Estimate

Automatic Gate Repair in Highland Park: Restore Entry Fast

When an automated driveway gate stops working, technicians at Ironworks Gate Co. note that the issue quickly impacts both daily routine and property security. Heavy architectural iron and steel gates require precise mechanical balance and calibrated electronics to function smoothly. When a system stalls, drags, or fails to respond, quick diagnosis prevents minor mechanical strain from turning into permanent motor damage.

Properties often feature substantial gates mounted on stone pillars or steel posts. Over time, ground movement and standard component wear place unexpected strain on electric gate operators. Restoring these systems requires balancing the physical metalwork, foundational alignment, and digital access controls as a single working unit. See also Gate Repair in Highland Park | Call Now-10% Off | On-Site in 60 Minutes | Free Estimate.

Why Automatic Driveway Gates Fail

While an unresponsive gate might seem like a simple electrical failure, the root cause is frequently mechanical. Driveway gates can face distinct environmental challenges from shifting or expansive soils.

During wet periods and dry heat waves, certain soils can expand and contract significantly. When the earth shifts beneath driveway footings, heavy gate posts can tilt by fractions of an inch. While this movement is often difficult to detect visually, it changes the geometry of the entire gate leaf. Instead of swinging or rolling with minimal resistance, the gate begins to bind at the hinges or drag along its track.^[1]

This creates constant mechanical drag. Gate operators from brands like LiftMaster, Viking, DoorKing, and FAAC are built to move specific weight loads under free-moving conditions. When forced to pull against physical friction, the electric motor draws excess amperage and internal gears grind under heavy load. Over time, as specialists at Ironworks Gate Co. observe, the drive system can wear prematurely if the physical gate is out of alignment.^[3]

Common Mechanical and Electrical Gate Issues

Beyond soil movement, standard wear and tear can compromise automated gate systems across several key areas:

• Worn Hinges and Binding Tracks: Heavy ornamental swing gates put intense leverage on sealed ball-bearing hinges. If lubrication dries out or posts lean, the hinges bind. On sliding gates, ground track shifting or debris in V-groove wheels causes the motor to stall.
• Safety Sensor Misalignment: Photo-eye infrared sensors must maintain precise line-of-sight across the driveway. Vibration, plant growth, or shifted mounting brackets break this beam, triggering safety reversals that prevent the gate from closing.
• Access Control and Board Faults: Weather extremes, from summer heat to winter freezes, can introduce condensation into keypad enclosures, intercom systems, and main motherboard relays. In addition, insects or small pests frequently nest inside warm control boxes, shorting out sensitive low-voltage circuits.

Gate Opener Diagnostics and On-Site Repairs

Many automatic gate issues can often be diagnosed and repaired on-site during a single visit. Technicians, including those at Ironworks Gate Co., evaluate the physical balance of the gate leaf before testing the electrical components, ensuring that new parts are not subjected to immediate mechanical strain.

Operator Type	Common On-Site Repairs	When Replacement Is Needed

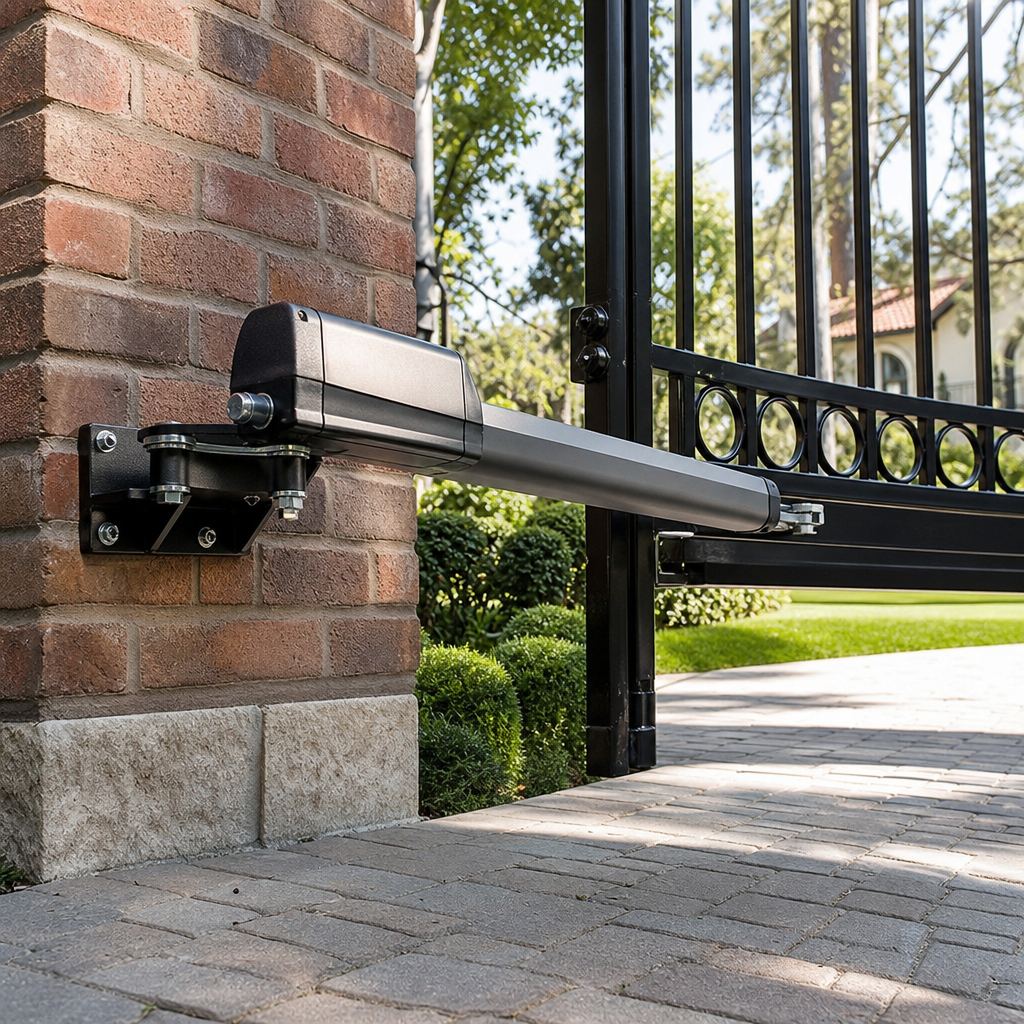

DC Linear Actuators & Swing Operators	Control board swaps, backup battery replacement, limit switch calibration, safety eye realignment	Cracked housing, stripped internal drive gears, or obsolete electronics that no longer meet current industry safety standards
Pad-Mounted Commercial/Residential Operators	Drive chain tensioning, sprocket replacement, master relay board repairs, clutch adjustments	Severe internal gearbox failure, motor burnout from uncorrected structural drag, or heavy corrosion
Underground & Hydraulic Operators	Hydraulic fluid flushes, seal kit rebuilds, pressure valve adjustments, bleed air lines	Scored internal hydraulic cylinders, pump motor failure, or extensive water intrusion in subterranean boxes

Access Controls, Loop Detectors, and System Integration

According to Ironworks Gate Co., modern driveway gates rely on a network of safety and convenience accessories. Complete repair service includes testing buried exit loops, safety shadow loops, wireless keypads, telephone entry systems, and smart home integrations (such as myQ or custom intercom systems). Ensuring clean signal transmission across all access points keeps the gate reliable for family members, staff, and emergency services.

Estimated Costs for Automatic Gate Repair

Nationally, estimated residential automatic gate repairs generally range between $550 and $1,500. The final cost depends on gate size, whether parts need rebuilding or replacing, and whether physical ironwork requires realignment alongside electrical work.

• Basic Adjustments and Minor Electrical Repairs ($250 – $500 estimated): Routine sensor realignment, limit switch reprogramming, hinge lubrication, remote programming, or minor wiring repairs.
• Component Replacement and Moderate Mechanical Work ($500 – $1,200 estimated): Replacing circuit control boards, swapping loop detectors, installing new photo eyes, replacing chain assemblies, or rebuilding roller assemblies on sliding gates.
• Major Operator Overhauls and Structural Realignment ($1,200 – $2,500+ estimated): Replacing complete motor drive units, rebuilding hydraulic arms, re-setting shifted support posts, or performing major welding and hinge reconstruction on heavy custom iron gates.

Repairing vs. Replacing an Older Motorized Gate

If your gate operator is under ten to fifteen years old and structural parts are sound, targeted repairs are usually the most practical choice. However, if the operator has experienced repeated motor failures, lacks modern safety entrapment protection features common in current systems, or parts are no longer manufactured, upgrading to a modern system is often more reliable and cost-effective over time.

Frequently Asked Questions

How much does automatic gate repair typically cost?

Nationwide, standard estimated repairs often fall between $550 and $1,500. Minor electronic adjustments or sensor realignments typically sit at the lower end of that range, while replacing main control motherboards, hydraulic arms, or realigning heavy iron gates requiring welding will sit higher.

What are the most common reasons an automatic driveway gate stops opening or closing?

The primary causes are tripped safety sensors, dead operator backup batteries, broken drive chains, or mechanical binding caused by post shifting. If a gate starts to move and suddenly reverses, an obstructed or misaligned photo-eye beam is usually responsible.

Are same-day or emergency gate repair services available?

Emergency repair options depend on current technician availability and scheduling. When a gate fails closed, trapping vehicles inside, or fails open, leaving a property exposed, prompt dispatch may be requested to secure the property, disengage damaged mechanics safely, or perform needed on-site repairs.

Can faulty gate openers, sensors, or keypads be repaired on-site?

Many gate repairs can often be completed on-site during an initial visit. Service vehicles typically carry common parts such as universal circuit boards, replacement photo-eyes, wireless keypads, backup batteries, chain kits, and standard hardware for major brands like LiftMaster, DoorKing, FAAC, and Viking.^[2]

What types of automatic gates can be serviced?

Service from teams like Ironworks Gate Co. covers major residential and light commercial configurations, including single and bi-parting swing gates, linear sliding gates, cantilever gates, and underground hydraulic systems.

How does soil movement affect my gate motor warranty?

Installing a replacement motor on a gate that binds or drags may void manufacturer warranties. A proper service call generally checks gate balance and physical swing clearance first, verifying that the gate moves smoothly by hand before connecting new automated equipment.

Sources

1. Rising Demand For Gate Repair Dallas TX 2025 … – Holliston – pr.hollistontownnews.com (2025)
2. [PDF] Some structural relationships of Texas Blackland soils with special … – upload.wikimedia.org
3. DASMA: Door & Access Systems Manufacturers Association – dasma.com

Related reading: Gate Wheel Repair in Carrollton – Call Now-10% Off – On-Site in 60 Minutes – Free Estimate

Related reading: Gate Repair in Carrollton – Call Now-10% Off – On-Site in 60 Minutes – Free Estimate

Related reading: Gate Repair in University Park – 10% Off & Free Estimate – On-Site in 60 Minutes

Frequently Asked Questions

How do specialists correct heavy estate gate posts that have shifted due to ground movement?

When expansive soils cause post tilting, Ironworks Gate Co. utilizes specialized structural engineering and on-site metal fabrication to realign hinges, level mounting brackets, or reinforce footings. Correcting the physical gate geometry first ensures that replacement motors or existing operators run smoothly without premature mechanical burnout.

What should I do if my automatic driveway gate is stuck shut and trapping vehicles?

You can disengage the operator using the system's manual emergency release key to free the gate leaf. For fast resolution, Ironworks Gate Co. offers 24/7 same-day emergency automatic gate repair across Highland Park to safely restore secure entry and exit.

Can smart access systems and intercom keypads be upgraded during a standard repair service?

Yes, technicians from Ironworks Gate Co. can troubleshoot, repair, or retrofit advanced access controls like myQ smart integrations, buried loop detectors, and cellular telephone entry systems during a service visit. Property owners can schedule a free on-site gate assessment to evaluate both physical metalwork and digital entry components.
